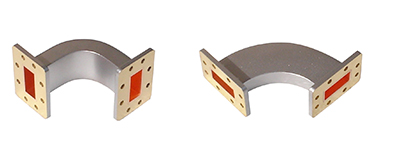

Rectangle WG Bend
Vector Telecom offers a standard product line of E-bends and H-bends covering waveguide sizes WR10 thru WR430. Multi-degrees, additional sizes, configurations and combinations are available on request.
Rectangle WG BendRectangle WG Bend
Download Rectangle WG Bend Catalogue »
Rectangle WG Bend Product Range
 MODEL NO  FREQ RANGE  VSWR  STD DIMENSIONS  WG TYPE (IEC/EIA)  FLANGE TYPE  MATERIAL  PDF Datasheet
  (GHz) Max A*B*R (mm)***
VT9WTEBAXBPM 0.75-1.15 1.15 R9/WR975 FDP/FDM Al
VT9WTHBAXBPM 0.75-1.15 1.15 R9/WR975 FDP/FDM Al
VT12WTEBAXBPM 0.96-1.46 1.15 R12/WR770 FDP/FDM Al
VT12WTHBAXBPM 0.96-1.46 1.15 R12/WR770 FDP/FDM Al
VT14WTEBAXBPM 1.13-1.73 1.15 R14/WR650 FDP/FDM Al
VT14WTHBAXBPM 1.13-1.73 1.15 R14/WR650 FDP/FDM Al
VT18WTEBAXBPM 1.45-2.20 1.15 R18/WR510 FDP/FDM Al
VT18WTHBAXBPM 1.45-2.20 1.15 R18/WR510 FDP/FDM Al
VT22WEBAXBPM 1.72-2.61 1.15 150*150 R22/WR430 FDP/FDM Al/Cu
VT22WHBAXBPM 1.72-2.61 1.15 150*150 R22/WR430 FDP/FDM Al/Cu
VT26WEBAXBPM 2.17-3.30 1.15 100*100 R26/WR340 FDP/FDM Al/Cu
VT26WHBAXBPM 2.17-3.30 1.15 180*180 R26/WR340 FDP/FDM Al/Cu
VT32WEBAXBPM 2.60-3.95 1.1 100*100 R32/WR284 FDP/FDM Al/Cu
VT32WHBAXBPM 2.60-3.95 1.1 150*150 R32/WR284 FDP/FDM Al/Cu
VT40WEBAXBPM 3.22-4.90 1.1 80*80 R40/WR229 FDP/FDM Al/Cu
VT40WHBAXBPM 3.22-4.90 1.1 100*100 R40/WR229 FDP/FDM Al/Cu
VT48WEBAXBPM 3.94-5.99 1.1 80*80 R48/WR187 FDP/FDM Al/Cu
VT48WHBAXBPM 3.94-5.99 1.1 80*80 R48/WR187 FDP/FDM Al/Cu
VT58WEBAXBPM 4.64-7.05 1.1 80*80 R58/WR159 FDP/FDM Al/Cu
VT58WHBAXBPM 4.64-7.05 1.1 80*80 R58/WR159 FDP/FDM Al/Cu
VT70WEBAXBPM 5.38-8.17 1.1 50*50 R70/WR137 FDP/FDM Al/Cu
VT70WHBAXBPM 5.38-8.17 1.1 70*70 R70/WR137 FDP/FDM Al/Cu
VT84WEBAXBPM 6.57-9.99 1.1 50*50 R84/WR112 FBP/FBM/FBE Al/Cu
VT84WHBAXBPM 6.57-9.99 1.1 70*70 R84/WR112 FBP/FBM/FBE Al/Cu
VT100WEBAXBPM 8.20-12.50 1.1 40*40 R100/WR90 FBP/FBM/FBE Al/Cu
VT100WHBAXBPM 8.20-12.50 1.1 50*50 R100/WR90 FBP/FBM/FBE Al/Cu
VT120WEBAXBPM 9.84-15.0 1.1 40*40 R120/WR75 FBP/FBM/FBE Al/Cu
VT120WHBAXBPM 9.84-15.0 1.1 40*40 R120/WR75 FBP/FBM/FBE Al/Cu
VT140WEBAXBPM 11.9-18.0 1.1 40*40 R140/WR62 FBP/FBM/FBE Al/Cu
VT140WHBAXBPM 11.9-18.0 1.1 40*40 R140/WR62 FBP/FBM/FBE Al/Cu
VT180WEBAXBPM 14.5-22.0 1.1 30*30 R180/WR51 FBP/FBM/FBE Al/Cu
VT180WHBAXBPM 14.5-22.0 1.1 30*30 R180/WR51 FBP/FBM/FBE Al/Cu
VT220WEBAXBPM 17.6-26.7 1.1 30*30 R220/WR42 FBP/FBM/FBE Al/Cu
VT220WHBAXBPM 17.6-26.7 1.1 30*30 R220/WR42 FBP/FBM/FBE Al/Cu
VT260WEBAXBPM 21.7-33.0 1.15 30*30 R260/WR34 FBP/FBM/FBE Al/Cu
VT260WHBAXBPM 21.7-33.0 1.15 30*30 R260/WR34 FBP/FBM/FBE Al/Cu
VT320WEBAXBPM 26.3-40.0 1.15 30*30 R320/WR28 FBP/FBM/FBE Al/Cu
VT320WHBAXBPM 26.3-40.0 1.15 30*30 R320/WR28 FBP/FBM/FBE Al/Cu
VT400WEBAXBPM 32.9-50.1 1.15 30*30 R400/WR22 FUGP Cu
VT400WHBAXBPM 32.9-50.1 1.15 30*30 R400/WR22 FUGP Cu
VT500WEBAXBPM 39.2-59.6 1.15 30*30 R500/WR19 FUGP Cu
VT500WHBAXBPM 39.2-59.6 1.15 30*30 R500/WR19 FUGP Cu
VT620WEBAXBPM 49.8-75.8 1.15 30*30 R620/WR15 FUGP Cu
VT620WHBAXBPM 49.8-75.8 1.15 30*30 R620/WR15 FUGP Cu
VT740WEBAXBPM 60.5-91.9 1.15 30*30 R740/WR12 FUGP Cu
VT740WHBAXBPM 60.5-91.9 1.15 30*30 R740/WR12 FUGP Cu
VT900WEBAXBPM 73.8-110 1.15 30*30 R900/WR10 FUGP Cu
VT900WHBAXBPM 73.8-110 1.15 30*30 R900/WR10 FUGP Cu

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
*** Legs (A,B) available in other sizes. Consult sales engineer for more information.
[Ordering Information]
