Coaxial Termination
Download Coaxial Termination Catalogue »
Coaxial Termination Product Range
 MODEL NO  AVG POWER  PEAK POWRE  FREQ RANGE  VSWR  CONNECTOR  IMPEDANCE
  (W) (kW) (GHz) Max (Ohm)
VT124CL2S 2 0.25 DC-12.4 1.10-1.25 SMA 50
VT040CL2S 2 0.25 DC-4 ≤1.20 SMA 50
VT400CL2S 2 0.25 DC-40 1.10-1.40 SMA 50
VT180CL2S1 2 0.25 DC-18 1.10-1.30 SMA 50
VT180CL2S2 2 0.25 DC-18 1.05-1.30 SMA 50
VT180CL2S3 2 0.5 DC-18 ≤1.25 SMA 50
VT400CL5S 5 0.5 DC-40 ≤1.40 SMA 50
VT180CL10S 10 0.5 DC-18 ≤1.45 SMA 50
VT060CL2N 2 0.5 DC-6 1.10-1.25 N,SMA,BNC,TNC,7/16 50
VT180CL2N 2 0.5 DC-18 1.10-1.30 N,BNC,SMA,TNC,7/16 50
VT030CL2 2 1 DC-3 ≤1.10 7/16 (M) 50
VT080CL2N 2 0.5 DC-8 1.10-1.25 N(M) 50
VT060CL5N1 5 0.5 DC-6 1.10-1.30 N,BNC,SMA,TNC,7/16 50
VT060CL5N2 5 1 DC-6 1.10-1.25 N(M) 50
VT180CL5N1 5 0.5 DC-18 1.10-1.30 N 50
VT180CL5N2 5 0.5 DC-18 1.10-1.30 N,BNC,SMA,TNC 50
VT060CL10N 10 1 DC-6 1.10-1.30 N,BNC,SMA,TNC,7/16 50
VT100CL10N 10 1 DC-10 1.10-1.45 N 50
VT180CL10N1 10 1 DC-18 1.10-1.40 N,SMA,BNC,TNC 50
VT180CL10N2 10 1 DC-18 1.10-1.30 N 50
VT060CL25N 25 1 DC-6 1.10-1.25 SMA,N,7/16,TNC,BNC 50
VT100CL25N 25 1 DC-10 1.10-1.45 N 50
VT180CL25N 25 1 DC-18 1.15-1.35 N,SMA,TNC 50
VT060CL30N 30 10 DC-6 1.10-1.30 N,SMA,7/16,TNC,BNC 50
VT100CL30N 30 1 DC-10 1.10-1.45 N 50
VT040CL50N1 50 10 DC-4 1.05-1.20 N,SMA,7/16,TNC 50
VT060CL50N 50 10 DC-4 1.05-1.20 N,SMA,7/16,TNC 50
VT100CL50N 80 1 DC-18 1.15-1.45 N 50
VT180CL50N1 80 10 DC-4 1.05-1.25 N,7/16,TNC 50
VT180CL50N2 50 5 DC-18 1.10-1.55 N,7/16,SMA 50
VT040CL80N1 50 1 DC-18 1.10-1.45. N,SMA 50
VT180CL80N1 50 1 DC-10 1.10-1.45 N 50
VT180CL80N2 80 5 DC-18 1.15-1.55 N 50
VT040CL100N1 100 10 DC-4 1.10-1.25 N,7/16 50
VT180CL100N1 100 5 DC-18 1.10-1.25 N 50
VT180CL100N2 100 5 DC-18 1.10-1.55 N 50
VT040CL150N 150 10 DC-4 1.15-1.30 N,7/16 50
VT180CL150N1 150 10 DC-18 1.15-1.50 N 50
VT180CL150N2 150 5 DC-18 1.15-1.55 N 50
VT040CL200N 200 10 DC-4 1.15-1.30 N,7/16 50
VT100CL200N 200 5 DC-10 1.10-1.35 N,7/16 50
VT040CL250N 200 10 DC-4 1.15-1.35 N,7/16 50
VVT100CL25N2 25 5 DC-10 1.10-1.35 N,7/16 50
VT040CL300N1 300 10 DC-4 1.15-1.40 N,7/16 50
VT100CL300N 300 5 DC-10 1.10-1.35 N,7/16 50
VT040CL400N 400 10 DC-4 1.15-1.45 N,7/16 50
VT100CL400N 400 10 DC-10 1.10-1.50 N,7/16 50
VT040CL500N1 500 10 DC-4 1.15-1.40 N,7/16 50
VT040CL500N2 500 5 DC-4 1.15-.155 N,7/16 50
VT040CL800N 800 10 DC-4 1.20-1.45 N,7/16 50
VT040CL1000N 1000 10 DC-4 ≤1.40 N,7/16,L27 50
VT040CL1500N 1500 10 DC-4 ≤1.40 N,7/16,L27 50
VT040CL2000N 2000 10 DC-4 ≤1.40 N,7/16,L27 50
VT020CL1000N 1000 50 DC-2 ≤1.30 N,7/16,L27 50
VT020CL2000N 2000 50 DC-2 ≤1.30 N,7/16,L27 50
VT020CL3000N 3000 50 DC-2 ≤1.30 L27, 7/16,L36 50
VT010CL5000N 5000 100 DC-1 ≤1.40 L27, 7/16,L36 50
VT030CL1N 1 0.5 DC-3 ≤1.20 N,NBC 75
VT030CL2N 2 0.5 DC-3 ≤1.20 N,NBC 75
VT030CL5N 5 0.5 DC-3 ≤1.20 N,NBC 75
VT030CL50N 50 5 DC-3 ≤1.05 N 50
VT030CL150N 150 5 DC-3 ≤1.05 N 50
VT085CL30N 30 5 DC-8.5 ≤1.30 N,SMA 50
VT180CL50N3 50 5 DC-18 ≤1.55 N,SMA 50
VT180CL75N 75 5 DC-18 ≤1.55 N,SMA 50
VT180CL150N3 150 5 DC-18 ≤1.55 N 50
VT040CL50N2 50 10 DC-4 ≤1.30 N 50
VT040CL100N2 100 10 DC-4 ≤1.30 N 50
VT040CL300N2 300 10 DC-4 ≤1.40 N 50
VT180CL50N4 50 5 DC-18 ≤1.55 N 50
VT180CL100N3 100 5 DC-18 ≤1.55 N 50
VT180CL200N 200 1 DC-18 ≤1.55 N 50
VT0820CL300N 300 5 0.8-2 ≤1.20 N 50
VT0820CL350N 350 5 0.8-2 ≤1.20 N 50
VT1214CL300N 300 12 1.2-1.4 ≤1.20 N 50
VT040CL25N 25 1 DC-4 ≤1.20 N 50
VT040CL30N 30 1 DC-4 ≤1.20 N 50
VT040CL50N3 50 1 DC-4 ≤1.20 N 50
VT040CL80N2 80 1 DC-4 ≤1.20 N 50
VT040CL100N3 100 5 DC-4 ≤1.20 N 50

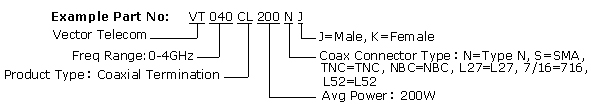

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
[Ordering Information]
