Waveguide Short
Vector Telecom offers a standard product line of waveguide short plates which provide high reflection short circuits for terminating all standard waveguides. Vector Telecom offers a cover, all-clear configuration as a standard product. Alternate materials and configurations are available upon request.Waveguide Short
Waveguide Short
Download Waveguide Short Catalogue »
Waveguide Short Product Range
 MODEL NO  FREQ RANGE  VSWR  THICKNESS  WG TYPE (IEC/EIA)  FLANGE TYPE  MATERIAL  PDF Datasheet
  (GHz) Max (mm)
VT3WSA 0.32-0.49 60 23 R3/WR2300 FDP Al
VT4WSA 0.35-0.53 60 23 R4/WR2100 FDP Al
VT5WSA 0.41-0.62 60 18 R5/WR1800 FDP Al
VT6WSA 0.49-0.75 60 18 R6/WR1500 FDP Al
VT8WSA 0.64-0.98 60 14 R8/WR1150 FDP Al
VT9WSA 0.75-1.15 60 14 R9/WR975 FDP Al
VT12WSA 0.96-1.46 60 12 R12/WR770 FDP Al
VT14WSA 1.13-1.73 60 12 R14/WR650 FDP Al
VT18WSA 1.45-2.20 60 12 R18/WR510 FDP Al
VT22WSA 1.72-2.61 60 10 R22/WR430 FDP Al
VT26WSA 2.17-3.30 60 10 R26/WR340 FDP Al
VT32WSA 2.60-3.95 60 8 R32/WR284 FDP Al
VT40WSA 3.22-4.90 60 8 R40/WR229 FDP Al/Cu
VT48WSC 3.94-5.99 60 7 R48/WR187 FDP Al/Cu
VT58WSA 4.64-7.05 60 7 R58/WR159 FDP Al/Cu
VT70WSA 5.38-8.17 60 7 R70/WR137 FDP Al/Cu
VT84WSC 6.57-9.99 60 5 R84/WR112 FBP Al/Cu
VT100WSA 8.20-12.40 60 5 R100/WR90 FBP Al/Cu
VT100WSC
VT120WSC 9.84-15.0 60 5 R120/WR75 FBP Al/Cu
VT140WSC 11.9-18.0 60 5 R140/WR62 FBP Al/Cu
VT180WSC 14.5-22.0 60 5 R180/WR51 FBP Al/Cu
VT220WSC 17.6-26.7 60 4 R220/WR42 FBP Al/Cu
VT260WSC 21.7-33.0 60 4 R260/WR34 FBP Al/Cu
VT320WSC 26.3-40.0 60 4 R320/WR28 FBP Al/Cu
VT500WSC 39.2-59.6 60 4 R500/WR19 FUGP Cu
VT620WSC 49.8-75.8 60 4 R620/WR15 FUGP Cu
VT740WSC 60.5-91.9 60 4 R740/WR12 FUGP Cu
VT900WSC 73.8-112 60 4 R900/WR10 FUGP Cu

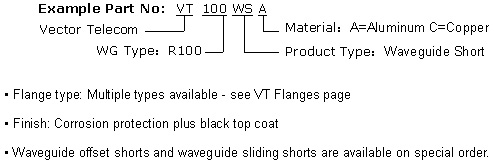

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
[Ordering Information]
