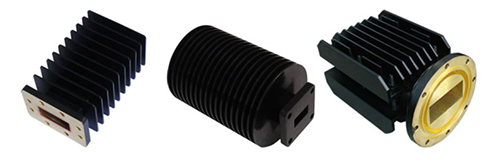

Waveguide High Power Termination
Vector Telecom manufactures a wide selection of high power terminations. Please call us and discuss your special needs with one of our sales engineers.
Waveguide High Power Termination Product Range
 MODEL NO  FREQ RANGE  VSWR***  AVG POWER  WG TYPE (IEC/EIA)  FLANGE TYPE  MATERIAL  PDF Datasheet
  (GHz) (Max) (W)
VT14WHPL100PA 1.13-1.73 1.2 100 R14/WR650 FDP/FDM Al
VT14WHPL350PA 1.13-1.73 1.2 350 R14/WR650 FDP/FDM Al
VT14WHPL500PA 1.13-1.73 1.2 500 R14/WR650 FDP/FDM Al
VT14WHPL1000PA 1.13-1.73 1.2 1000 R14/WR650 FDP/FDM Al
VT18WHPL100PA 1.45-2.20 1.2 100 R18/WR510 FDP/FDM Al/Cu
VT18WHPL300PA 1.45-2.20 1.2 300 R18/WR510 FDP/FDM Al/Cu
VT18WHPL500PA 1.45-2.20 1.2 500 R18/WR510 FDP/FDM Al/Cu
VT18WHPL1000PA 1.45-2.20 1.2 1000 R18/WR510 FDP/FDM Al/Cu
VT22WHPL100PA 1.72-2.61 1.15 100 R22/WR430 FDP/FDM Al/Cu
VT22WHPL250PA 1.72-2.61 1.15 250 R22/WR430 FDP/FDM Al/Cu
VT22WHPL300PA 1.72-2.61 1.15 300 R22/WR430 FDP/FDM Al/Cu
VT22WHPL500MA 1.72-2.61 1.15 500 R22/WR430 FDP/FDM Al/Cu
VT22WHPL500PA 1.72-2.61 1.15 500 R22/WR430 FDP/FDM Al/Cu
VT26WHPL200PA 2.17-3.30 1.15 200 R26/WR340 FDP/FDM Al/Cu
VT26WHPL300PA 2.17-3.30 1.15 300 R26/WR340 FDP/FDM Al/Cu
VT26WHPL800PA 2.17-3.30 1.15 800 R26/WR340 FDP/FDM Al/Cu
VT32WHPL200PA 2.60-3.95 1.1 250 R32/WR284 FDP/FDM Al/Cu
VT32WHPL300PA 2.60-3.95 1.1 500 R32/WR284 FDP/FDM Al/Cu
VT40WHPL300PA 3.22-4.90 1.1 300 R40/WR229 FDP/FDM Al/Cu
VT40WHPL1000PA 3.22-4.90 1.1 1000 R40/WR229 FDP/FDM Al/Cu
VT48WHPL70PC 3.94-5.99 1.1 70 R48/WR187 FDP/FDM Al/Cu
VT48WHPL300PC 3.94-5.99 1.1 100 R48/WR187 FDP/FDM Al/Cu
VT48WHPL400PA 3.94-5.99 1.1 400 R48/WR187 FDP/FDM Al/Cu
VT48WHPL500PA 3.94-5.99 1.1 500 R48/WR187 FDP/FDM Al/Cu
VT48WHPL1000PC 3.94-5.99 1.1 1000 R48/WR187 FDP/FDM Al/Cu
VT58WHPL100PC 4.64-7.05 1.1 100 R58/WR159 FDP/FDM Al/Cu
VT58WHPL300PC 4.64-7.05 1.1 300 R58/WR159 FDP/FDM Al/Cu
VT58WHPL800PC 4.64-7.05 1.1 800 R58/WR159 FDP/FDM Al/Cu
VT70WHPL75PC 5.38-8.17 1.1 75 R70/WR137 FDP/FDM Al/Cu
VT70WHPL100PC 5.38-8.17 1.1 100 R70/WR137 FDP/FDM Al/Cu
VT70WHPL200PC 5.38-8.17 1.1 200 R70/WR137 FDP/FDM Al/Cu
VT70WHPL250PC 5.38-8.17 1.1 250 R70/WR137 FDP/FDM Al/Cu
VT70WHPL300PC 5.38-8.17 1.1 300 R70/WR137 FDP/FDM Al/Cu
VT70WHPL500PA 5.38-8.17 1.1 500 R70/WR137 FDP/FDM Al/Cu
VT70WHPL1500PA 5.38-8.17 1.1 1500 R70/WR137 FDP/FDM Al/Cu
VT84WHPL50PC 6.57-9.99 1.1 50 R84/WR112 FDP/FDM Al/Cu
VT84WHPL200PC 6.57-9.99 1.1 200 R84/WR112 FDP/FDM Al/Cu
VT84WHPL500 PC 6.57-9.99 1.1 500 R84/WR112 FDP/FDM Al/Cu
VT84WHPL300PC 6.57-9.99 1.1 300 R84/WR112 FDP/FDM Al/Cu
VT100WHPL100PC 8.20-12.40 1.1 100 R100/WR90 FBP/FBM/FBE Al/Cu
VT100WHPL200PC 8.20-12.40 1.1 200 R100/WR90 FBP/FBM/FBE Al/Cu
VT100WHPL300PC 8.20-12.40 1.1 300 R100/WR90 FBP/FBM/FBE Al/Cu
VT120WHPL50PC 9.84-15.0 1.1 50 R120/WR75 FBP/FBM/FBE Al/Cu
VT120WHPL75PC 9.84-15.0 1.1 75 R120/WR75 FBP/FBM/FBE Al/Cu
VT120WHPL100PC 9.84-15.0 1.1 100 R120/WR75 FBP/FBM/FBE Al/Cu
VT120WHPL150PC 9.84-15.0 1.1 150 R120/WR75 FBP/FBM/FBE Al/Cu
VT120WHPL200PC 9.84-15.0 1.1 200 R120/WR75 FBP/FBM/FBE Al/Cu
VT120WHPL400PC 9.84-15.0 1.1 400 R120/WR75 FBP/FBM/FBE Al/Cu
VT120WHPL500PC 9.84-15.0 1.1 500 R120/WR75 FBP/FBM/FBE Al/Cu
VT140WHPL50PC 11.9-18.0 1.1 50 R140/WR62 FBP/FBM/FBE Al/Cu
VT140WHPL100PC 11.9-18.0 1.1 100 R140/WR62 FBP/FBM/FBE Al/Cu
VT140WHPL150PC 11.9-18.0 1.1 150 R140/WR62 FBP/FBM/FBE Al/Cu
VT140WHPL300PC 11.9-18.0 1.1 300 R140/WR62 FBP/FBM/FBE Al/Cu
VT140WHPL400PC 11.9-18.0 1.1 400 R140/WR62 FBP/FBM/FBE Al/Cu
VT140WHPL500PC 11.9-18.0 1.1 500 R140/WR62 FBP/FBM/FBE Al/Cu
VT180WHPL300PA 14.5-22.0 1.15 300 R180/WR51 FBP/FBM/FBE Al/Cu
VT180WHPL500PC 14.5-22.0 1.15 500 R180/WR51 FBP/FBM/FBE Al/Cu
VT220WHPL100PA 17.6-26.7 1.15 100 R220/WR42 FBP/FBM/FBE Al/Cu
VT220WHPL200PC 17.6-26.7 1.15 200 R220/WR42 FBP/FBM/FBE Al/Cu
VT260WHPL20PC 21.7-33.0 1.15 20 R260/WR34 FBP/FBM/FBE Al/Cu
VT260WHPL50PC 21.7-33.0 1.15 50 R260/WR34 FBP/FBM/FBE Al/Cu
VT260WHPL100PC 21.7-33.0 1.15 100 R260/WR34 FBP/FBM/FBE Al/Cu
VT260WHPL300PC 21.7-33.0 1.15 300 R260/WR34 FBP/FBM/FBE Al/Cu
VT320WHPL30PC 26.3-40.0 1.15 30 R320/WR28 FBP/FBM/FBE Al/Cu
VT320WHPL100PC 26.3-40.0 1.15 100 R320/WR28 FBP/FBM/FBE Al/Cu
VT320WHPL200PC 26.3-40.0 1.15 200 R320/WR28 FBP/FBM/FBE Al/Cu
VT320WHPL300PC 26.3-40.0 1.15 300 R320/WR28 FBP/FBM/FBE Al/Cu
VT320WHPL500PC 26.3-40.0 1.15 500 R320/WR28 FBP/FBM/FBE Al/Cu
VT400WHPL20PC 32.9-50.1 1.15 10 R400/WR22 FUGP Cu

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
*** VSWR refers to 30% of waveguide bandwidth.
[Ordering Information]
