Waveguide Low Power Termination

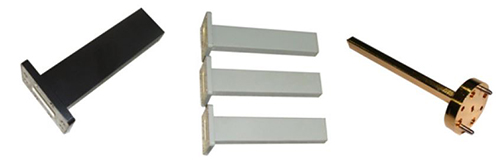

Vector Telecom's standard product line of low power terminations utilizes precision conical load elements for optimum electrical performance. This series of terminations is designed for low power input. VSWR is less than 1.05 over the full waveguide bandwidth.Waveguide Low Power Termination
Waveguide Low Power Termination
Download Waveguide Low Power Termination Catalogue »
Waveguide Low Power Termination Product Range
 MODEL NO  FREQ RANGE  VSWR  AVG POWER  LENGTH (L)  WG TYPE (IEC/EIA)  FLANGE TYPE  MATERIAL  PDF Datasheet
  (GHz) Max (W) (mm)
VT3WL1.05PA 0.32-0.49 1.05 25 2005 R3/WR2300 FDP/FDM Al
VT4WL1.05PA 0.35-0.53 1.05 25 1900 R4/WR2100 FDP/FDM Al
VT5WL1.05PA 0.41-0.62 1.05 25 1600 R5/WR1800 FDP/FDM Al
VT6WL1.05PA 0.49-0.75 1.05 25 1300 R6/WR1500 FDP/FDM Al
VT8WL1.05PA 0.64-0.98 1.05 25 1100 R8/WR1150 FDP/FDM Al
VT9WL1.03PA 0.75-1.15 1.03 25 660 R9/WR975 FDP/FDM Al
VT12WL1.05PA 0.96-1.46 1.05 25 680 R12/WR770 FDP/FDM Al
VT14WL1.03PA 1.13-1.73 1.03 25 570 R14/WR650 FDP/FDM Al
VT18WL1.03PA 1.45-2.20 1.05 20 550 R18/WR510 FDP/FDM Al/Cu
VT22WL1.03PA 1.72-2.61 1.03 20 470 R22/WR430 FDP/FDM Al/Cu
VT26WL1.03PA 2.17-3.30 1.03 2 350 R26/WR340 FDP/FDM Al/Cu
VT32WL1.03PA 2.60-3.95 1.03 2 278 R32/WR284 FDP/FDM Al/Cu
VT40WL1.03PA 3.22-4.90 1.03 2 275 R40/WR229 FDP/FDM Al/Cu
VT48WL1.03PA 3.94-5.99 1.03 2 170 R48/WR187 FDP/FDM Al/Cu
VT58WL1.03PC 4.64-7.05 1.03 2 135 R58/WR159 FDP/FDM Al/Cu
VT70WL1.03PC 5.38-8.17 1.03 2 180 R70/WR137 FDP/FDM Al/Cu
VT84WL1.03PC 6.57-9.99 1.03 2 150 R84/WR112 FBP/FBM/FBE Al/Cu
VT100WL1.03PC 8.20-12.50 1.03 2 130 R100/WR90 FBP/FBM/FBE Al/Cu
VT120WL1.03PC 9.84-15.0 1.03 2 110 R120/WR75 FBP/FBM/FBE Al/Cu
VT140WL1.03PC 11.9-18.0 1.03 2 90 R140/WR62 FBP/FBM/FBE Al/Cu
VT180WL1.03PC 14.5-22.0 1.03 2 75 R180/WR51 FBP/FBM/FBE Al/Cu
VT220WL1.03PC 17.6-26.7 1.03 0.5 85 R220/WR42 FBP/FBM/FBE Al/Cu
VT260WL1.03PC 21.7-33.0 1.03 0.5 55 R260/WR34 FBP/FBM/FBE Al/Cu
VT320WL1.03PC 26.3-40.0 1.03 0.5 40 R320/WR28 FBP/FBM/FBE Al/Cu
VT400WL1.15PC 32.9-50.1 1.1 0.5 40 R400/WR22 FUGP Cu
VT500WL1.15PC 39.2-59.6 1.15 0.5 40 R500/WR19 FUGP Cu
VT620WL1.15PC 49.8-75.8 1.15 0.5 38 R620/WR15 FUGP Cu
VT740WL1.15PC 60.5-91.9 1.15 0.5 30 R740/WR12 FUGP Cu
VT900WL1.15PC 73.8-112 1.15 0.5 30 R900/WR10 FUGP Cu

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
