H-Plane Tee
Vector Telecom manufactures a wide variety of H-Plane Tees. The junction of the auxiliary arm is made on the narrow wall of the main waveguide.H-Plane Tee
H-Plane Tee
Download H-Plane Tee Catalogue »
H-Plane Tee Product Range
 MODEL NO  FREQ RANGE  WG TYPE (IEC/EIA)  FLANGE TYPE  MATERIAL  PDF Datasheet
  (GHz)
VT3WHT 0.32-0.49 R3/WR2300 FDP/FDM Al
VT4WHT 0.35-0.53 R4/WR2100 FDP/FDM Al
VT5WHT 0.41-0.62 R5/WR1800 FDP/FDM Al
VT6WHT 0.49-0.75 R6/WR1500 FDP/FDM Al
VT8WHT 0.64-0.98 R8/WR1150 FDP/FDM Al
VT9WHT 0.77-1.14 R9/WR975 FDP/FDM Al
VT12WHT 0.96-1.46 R12/WR770 FDP/FDM Al
VT14WHT 1.14-1.72 R14/WR650 FDP/FDM Al
VT18WHT 1.45-2.20 R18/WR510 FDP/FDM Al
VT22WHT 1.72-2.60 R22/WR430 FDP/FDM Al
VT26WHT 2.17-3.30 R26/WR340 FDP/FDM Al/Cu
VT32WHT 2.60-3.95 R32/WR284 FDP/FDM Al/Cu
VT40WHT 3.30-4.90 R40/WR229 FDP/FDM Al/Cu
VT48WHT 3.95-5.85 R48/WR187 FDP/FDM Al/Cu
VT58WHT 4.90-7.05 R58/WR159 FDP/FDM Al/Cu
VT70WHT 5.85-8.20 R70/WR137 FDP/FDM Al/Cu
VT84WHT 2.60-3.95 R84/WR112 FBP/FBM/FBE Al/Cu
VT100WHTPC 8.20-12.4 R100/WR90 FBP/FBM/FBE Al/Cu
VT120WHT 10.0-15.0 R120/WR75 FBP/FBM/FBE Al/Cu
VT140WHT 12.4-18.0 R140/WR62 FBP/FBM/FBE Al/Cu
VT180WHT 15.0-22.0 R180/WR51 FBP/FBM/FBE Al/Cu
VT220WHT 18.0-26.5 R220/WR42 FBP/FBM/FBE Al/Cu
VT260WHT 22.0-33.0 R260/WR34 FBP/FBM/FBE Al/Cu
VT320WHT 26.3-40.0 R320/WR28 FBP/FBM/FBE Al/Cu
VT400WHT 32.9-60.1 R400/WR22 FUGP Cu
VT500WHT 39.2-59.6 R500/WR19 FUGP Cu
VT620WHTPPPC 49.8-75.8 R620/WR15 FUGP Cu
VT740WHTPPC 60.5-91.9 R740/WR12 FUGP Cu
VT900WHT 73.8-112 R900/WR10 FUGP Cu

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.

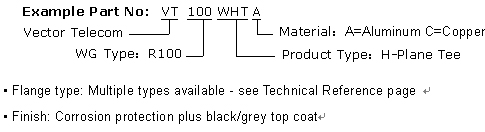

[Ordering Information]
